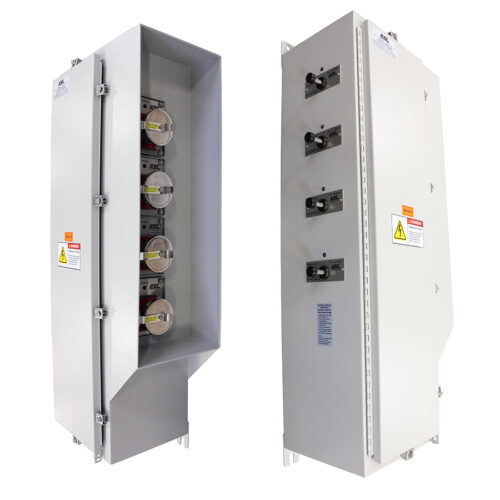

32A 480VAC 4-Gang Rack Mount Rear Actuated Assembly

Item No: 2221-39TR4
Catalog No: E4-R32-480-30-22SNEPR1-SP

Download Spec Sheet

Request More Info


  • UL Listed 4-gang rear actuated assembly complete with rear actuated safety-interlocked outlets each containing an integral 30A circuit breaker
  • Type 4x enclosure manufactured from 14GA seam-welded stainless steel (powder-coated grey)
  • (4) Rear actuated safety-interlocked ESL outlets #1701-79AN1 factory wired to power distribution block (PDB)
  • ON/OFF actuator rod and receptacle located on opposite sides of enclosure ensuring operator is away from the plug and receptacle connection when unit is energized
  • UL Listed circuit breaker rated 22kAIC @ 480VAC provides short circuit & overcurrent protection at each outlet
  • “Power On” high visibility indicator lights located on module face plate and actuation side
  • Each oultet’s actuator rod allows user to turn on/off and reset tripped breaker
  • PDB accepts incoming cable range of (1) #6AWG – 350kcmil per phase line side


  • UL Listed modules and assembly
  • UL 489 Listed / CSA certified molded case circuit breakers
