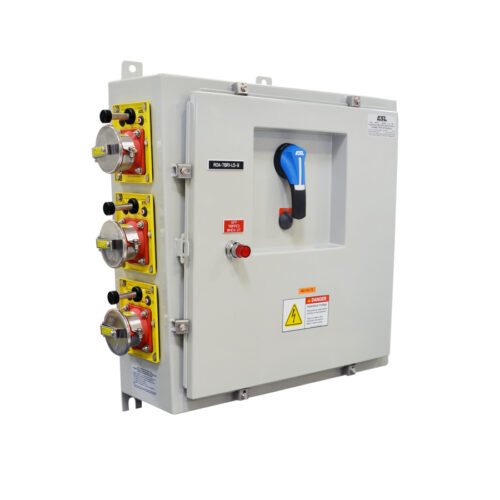

32A 480VAC 3-Gang Wall Mount Assembly

Item No: 2223-27JT
Catalog No: E3-R32-480-30-65SNDPPY-SP

Download Spec Sheet

Request More Info


  • UL Listed 3-gang assembly complete with UL Listed safety-interlocked outlets each containing an integral 30A circuit breaker
  • Type 4x enclosure manufactured from 14GA seamwelded stainless steel (powder-coated grey)
  • (3) safety-interlocked ESL outlets #1700-59ANPPY furnished with “Power On” and “Power Available” indicator lights. Factory wired to power distribution block (PDB)
  • UL Listed circuit breaker rated 65kAIC @ 480VAC provides short circuit & overcurrent protection at each outlet
  • Includes 100A GFP circuit breaker with external operator handle and pilot light to indicate tripped breaker
  • Each oultet’s actuator rod allows user to turn on/off and reset tripped breaker
  • PDB accepts incoming cable range of (2) #4AWG – 500kcmil per phase line side
  • Gasketed bolt-on access cover with drip shield


  • UL Listed modules and assembly
  • UL 489 Listed / CSA certified molded case circuit breakers
