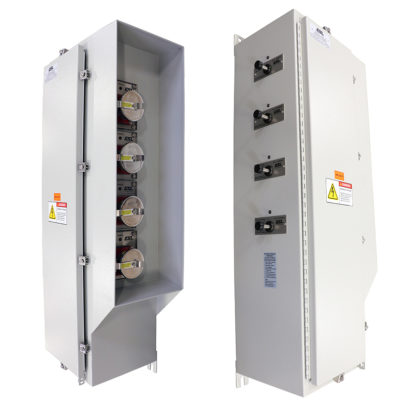

32A 480VAC 10-Gang Modular Reefer Sharing Unit

Item No: 3500-07B
Catalog No: E10-MRSU32-480-30-35WNEQP4-SP

Download Spec Sheet

Request More Info


  • 10 Modular Reefer Sharing Units (RSUs) to alternate power to up to 20 reefers (10 at a time) thereby doubling the frozen load capacity
  • Alternates power between two receptacles every 4 hours, other time settings available
  • Interlocked outlets cannot be energized until plug is mated
  • “Power On” green LED indicator light and “Power Available” blue LED indicator light
  • Easy-to-use timer adjustment knob
  • Ammeter to monitor total current draw
  • Forklift access to allow maximum flexibility for shipboard and landside use
  • Heavy-duty stainless steel construction resists corrosion & abuse
  • Each modular RSU is protected by a 30A circuit breaker rated 35kAIC at 480VAC
