Features
- Quick connect solution for permanent generator load
bank testing and a backup portable generator - A combination of one 3-position load selector switch
(L.B. – OFF – E-Bus) for the permanent generator and one
3-position source selector switch (S1 – OFF – S2) between the permanent and portable generators prevents source paralleling, eliminating the need for Kirk keys - Dry contacts are provided for the annunciator circuit
- Disconnects are 3-pole switches as standard (optional

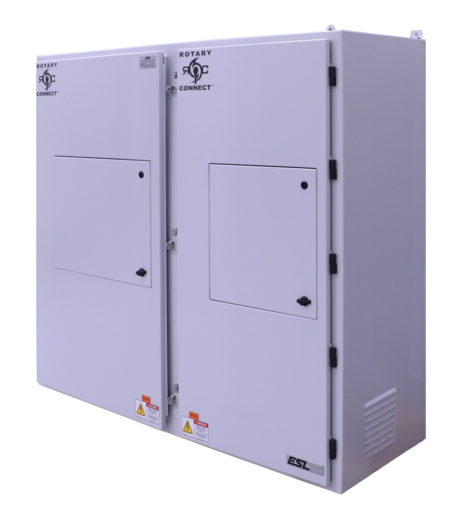

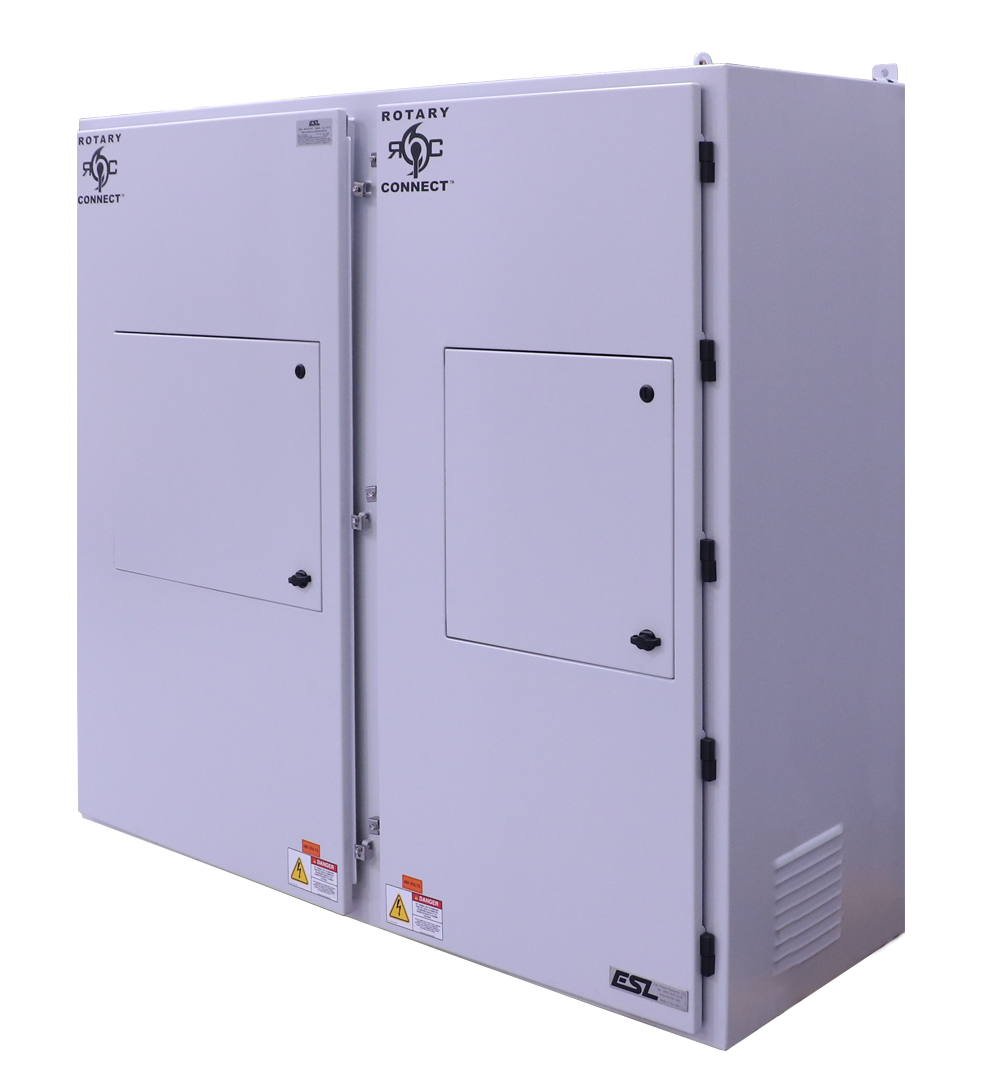

4-pole switches available) - Type 3R, double-coated, cold-rolled steel enclosure with
gray powder coat RAL 7035 (stainless steel & additional
colors optional) - Color-coded series 16 cam-style connectors for easy backup generator (male) & load bank (female) connection
- Handle cover provides security from unauthorized use
- Wall mountable; leg kits are optional
- Operating instructions are labeled on the door
- NEC 700.12 and NEC 700.3(F) compliant
Approvals
- UL/cUL 1008 Listed switches
- UL 1691 Listed receptacles
