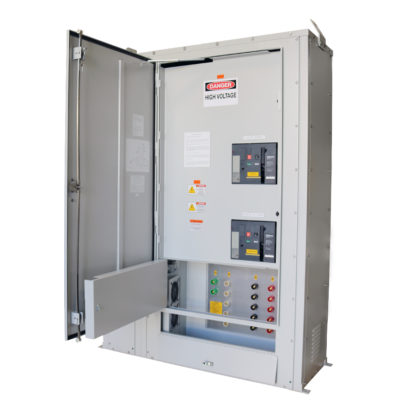

450-800A up to 600VAC TripleSwitch – 3-way Manual Transfer Switch

Features

  • Quick connect solution for permanent generator load bank testing and a backup portable generator
  • Mechanically interlocked mechanism prevents cross connecting power sources
  • Door & dead front panel for safe generator connection and operation
  • Disconnects are 3-pole circuit breakers as standard (optional 4-pole breakers or molded case switches available)
  • Type 3R double coated, cold-rolled steel enclosure with gray powdercoat RAL 7035 (stainless steel & additional colors optional)
  • Color-coded cam style connectors for easy back-up generator & load bank connection
  • Handle cover provides security from unauthorized use
  • Wall mountable; leg kits optional
  • Optional extended enclosure (8″ deeper) for bottom conduit feed
  • NEC 700.12 compliant
  • Accepts 24VDC signal from ATS to switch power during load bank testing (other signal trip voltages available)

Approvals

  • UL/cUL 1008 Listed assembly
  • UL 1691 Listed receptacles
  • UL 489 Listed/CSA certified molded case circuit breaker
  • UL 1087 Listed molded case switch
  • OSHPD seismic certification (OSP)
  • ICC-ES 156 shake-table tested/certified
  • IBC 2015/ASCE 7-10 compliant
